Sadhvuta

Overview

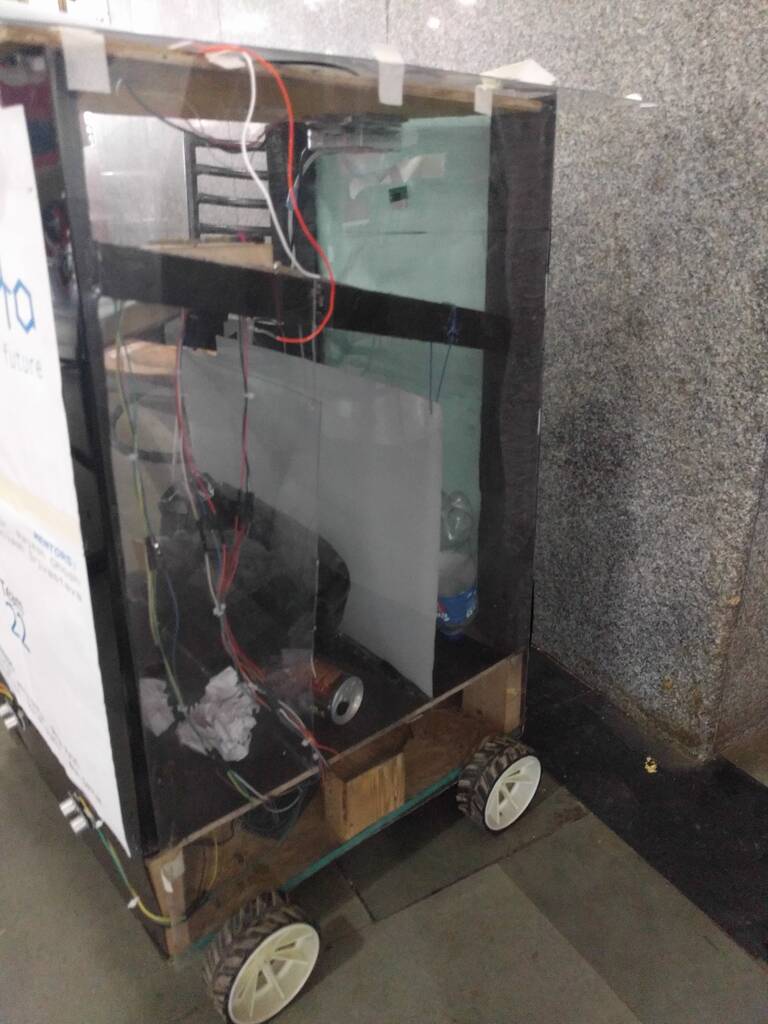

Sadhvuta is a four-wheeled, battery-powered mobile trash-sorting robot designed to automate waste segregation and reduce littering around campus.

The robot can be remotely driven to a waste collection point, where users deposit trash one item at a time. Each item is automatically classified into paper, metal, or plastic using a CNN-based vision system with 97% classification accuracy. Based on the predicted category, a mechanical sorting mechanism routes the waste into the corresponding collection bin.

The project combines mobile robotics, computer vision, mechatronics, and automated waste handling into a single physical system.

My Contributions

• Mechatronics: Designed and integrated the mechanical and electromechanical components responsible for waste handling and sorting.
• System Integration: Integrated the mobility, sensing, classification, and mechanical sorting subsystems into a functional end-to-end prototype.
• Team Management: Coordinated technical tasks and project execution across the team, ensuring integration between mechanical, electrical, and software components.

System

The system operates as a pipeline:

Remote Navigation → Waste Detection → CNN Classification → Category Selection → Mechanical Sorting → Dedicated Waste Bin

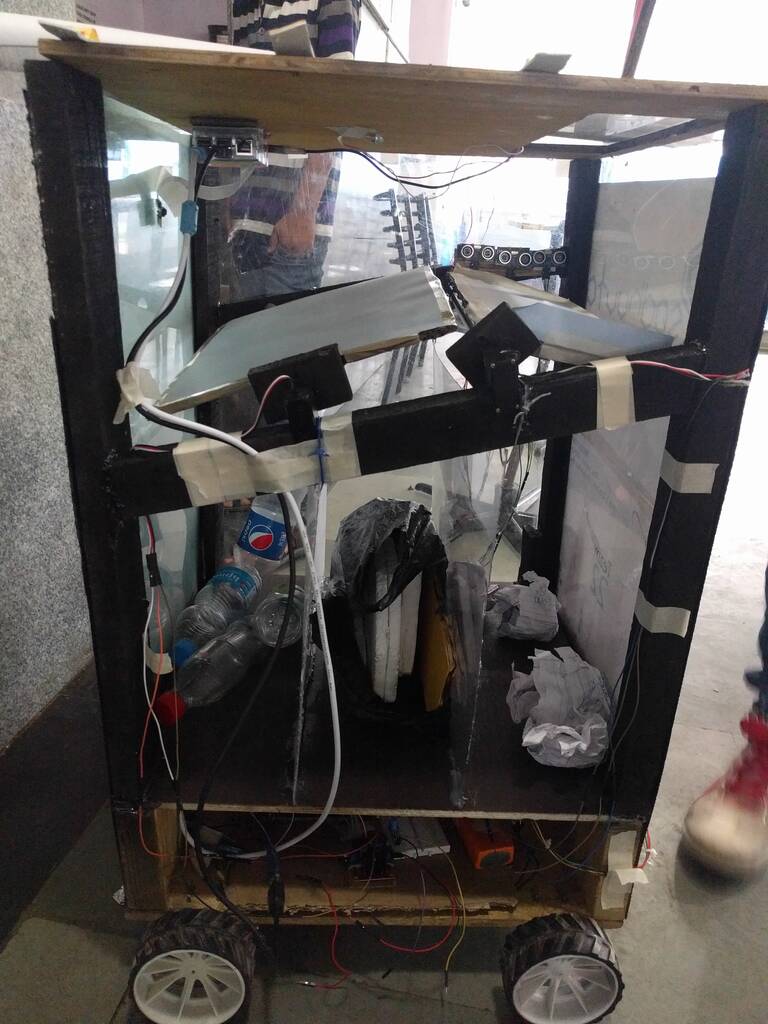

Once the robot reaches a collection point, the user inserts a single waste item. The vision system classifies the item into one of three categories — paper, metal, or plastic — and the sorting mechanism automatically directs it to the corresponding bin.

Technical Highlights

• Platform: Four-wheeled, battery-powered mobile robot
• Mobility: Remote-controlled drive system
• Classification: CNN-based waste classification
• Classification Accuracy: 97%
• Waste Categories: Paper, metal, plastic
• Sorting: Automated mechanical waste segregation
• Mechatronics: Mechanical sorting mechanism + electromechanical integration
• System Integration: Mobility, perception, classification, and sorting subsystems
• Application: Automated waste collection and segregation

Team

Sumit Patidar · Dhruv Patel · Versha Dhankar · Vishawajeet Patel · Aditya Sharma · Aksh Gautam
